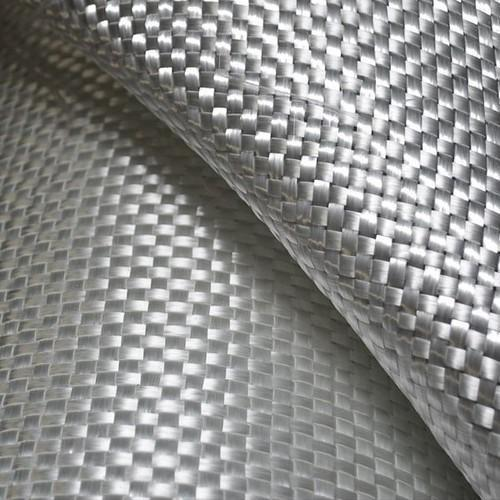

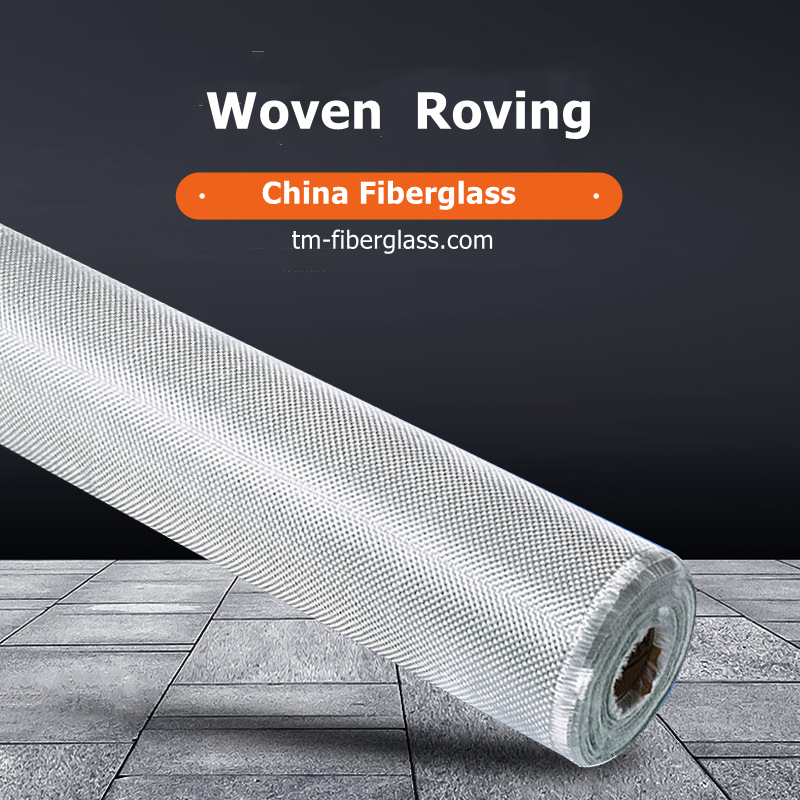

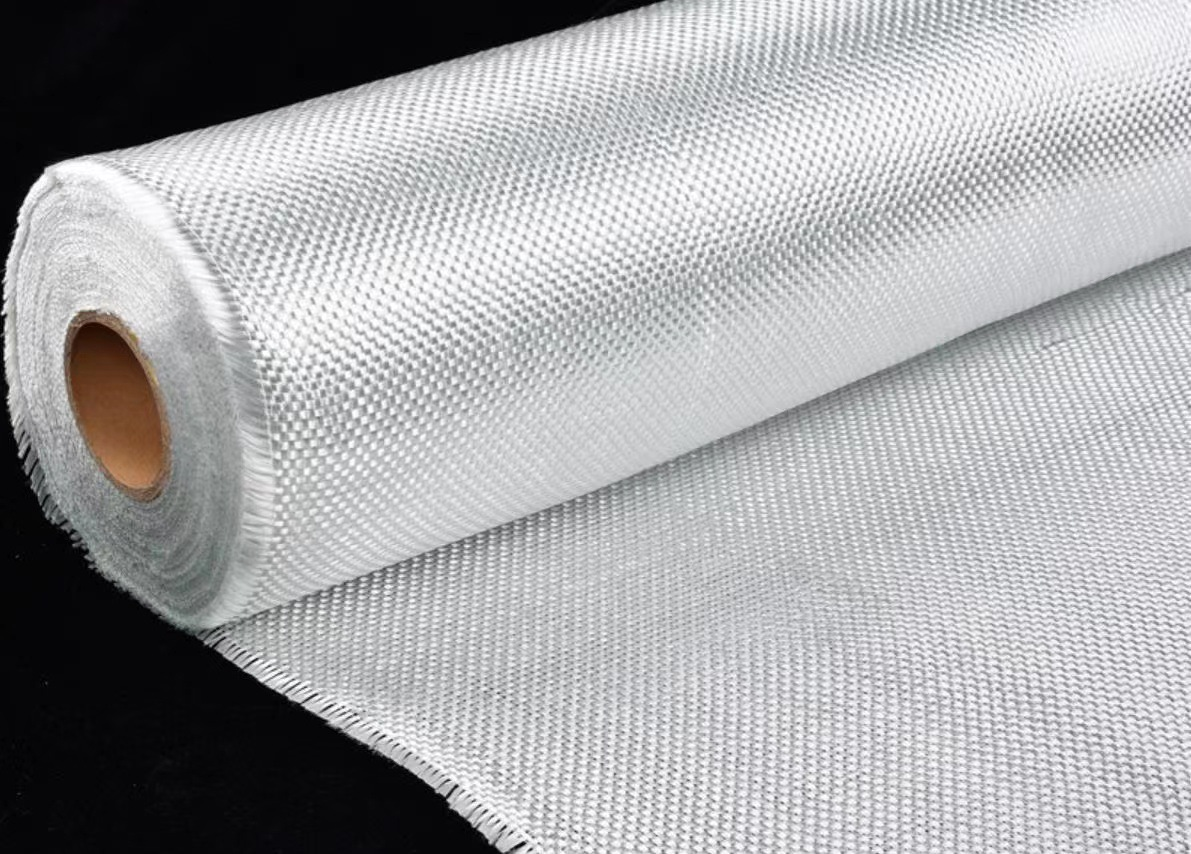

Woven Roving
Fiberglass woven roving is a heavy-duty, high-strength fabric made from continuous fiberglass roving that is interwoven in a bi-directional pattern.Woven roving is compatible with many resins, such as polyester, vinyl ester and epoxy resins.
Fiberglass Woven roving is a high-performance reinforcement and widely used in processes such as in hand lay-up, molding, and pultrusion for the production of boats, automotive parts,The fabric can be impregnated with resin and cured to create a strong and lightweight composite structure, furniture, sport facilities and other fields. It is commonly used in the manufacturing of composite materials, such as fiberglass reinforced plastics (FRP), due to its high strength, stiffness, and durability.
Product Features:
Multi-resin-compatible
Easy shape adaptation
Easy impregnation
Easy impregnation
Excellent mechanical properties
Technical Specification:
|
Item |
Tex |
Count of cloth (root/cm) |
Unit area mass (g/m) |
Breaking strength(N) |
Width(mm) |
|||
|
Warp yarn |
Weft yarn |
Wrap yarn |
Weft yarn |
Wrap yarn |
Weft yarn |
|||
|
EWR200 |
180 |
180 |
6.0 |
5.0 |
200±15 |
1300 |
1100 |
30-3000 |
|
EWR300 |
300 |
300 |
5.0 |
4.0 |
300±15 |
1800 |
1700 |
30-3000 |
|
EWR400 |
576 |
576 |
3.6 |
3.2 |
400±20 |
2500 |
2200 |
30-3000 |
|
EWR500 |
900 |
900 |
2.9 |
2.7 |
500±25 |
3000 |
2750 |
30-3000 |
|
EWR600 |
1200 |
1200 |
2.6 |
2.5 |
600±30 |
4000 |
3850 |
30-3000 |
|
EWR800 |
2400 |
2400 |
1.8 |
1.8 |
800±40 |
4600 |
4400 |
30-3000 |
|
CWR200 |
180 |
180 |
6.0 |
6.0 |
200±15 |
1150 |
1000 |
30-3000 |
|
CWR400 |
480 |
500 |
4.0 |
3.8 |
385±30 |
2000 |
2200 |
30-3000 |
|
CWR600 |
1300 |
960 |
2.6 |
2.6 |
600±45 |
3500 |
3000 |
30-3000 |
|
CWR800 |
2200 |
1760 |
2.0 |
2.0 |
810±40 |
4000 |
3600 |
30-3000 |
Storage：
This product should be stocked in dry and cool places.The best condition is with temperature between 15-35℃, with a relative humidity between 30%-70%. Please keep the product in its original packing before use,avoiding moisture.
Packing :

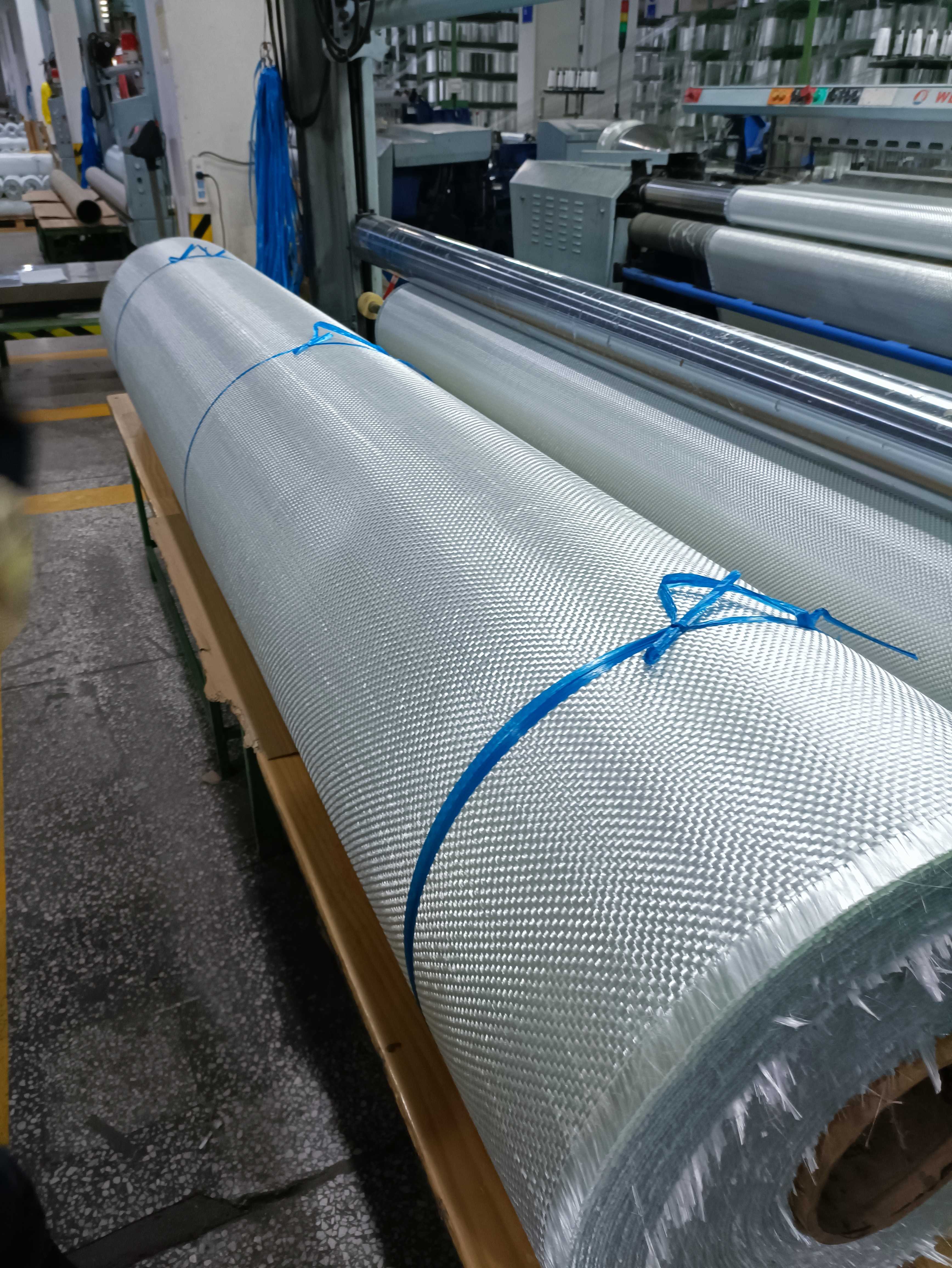

Each roll of woven roving is wound on paper tube(3"-4"Dia.) with plastic film,packed in individual cardboard box. With pallet packing or without pallet packing upon customer's request.
Application:
Fiberglass woven roving is often used in applications where high strength and stiffness are required, such as in the construction of boats, aircraft, and other structures that need to be lightweight yet strong. It is also commonly used in the manufacturing of sports equipment, such as surfboards, snowboards, and hockey sticks.
In addition, fiberglass woven roving can also be used in a variety of industrial applications, such as in the production of pipes, tanks, and other types of equipment that require high strength and durability. It is also used in the construction industry as a reinforcement material for concrete, providing added strength and stability to buildings and other structures.
