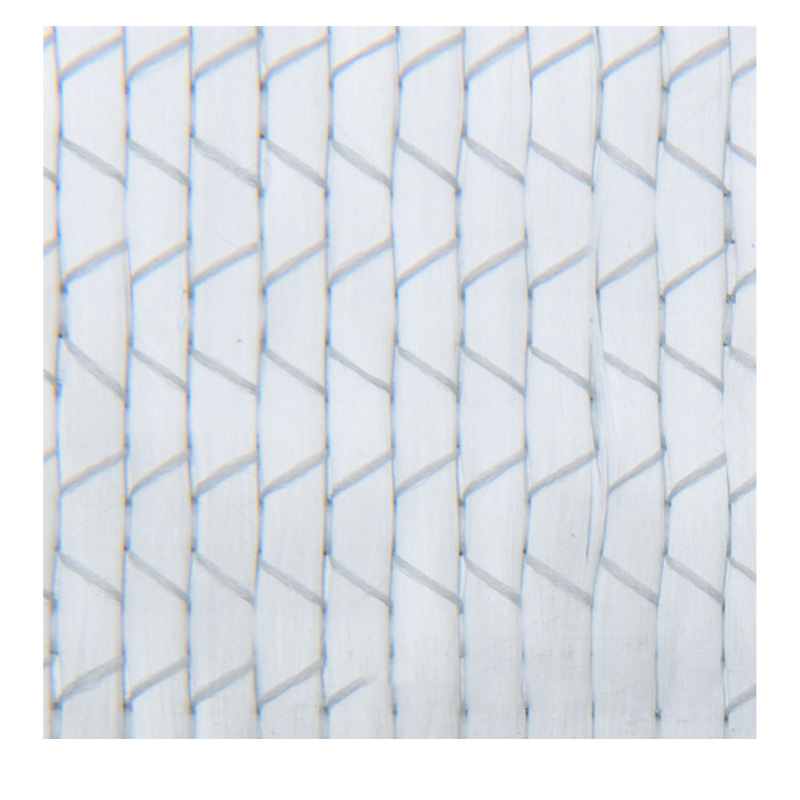

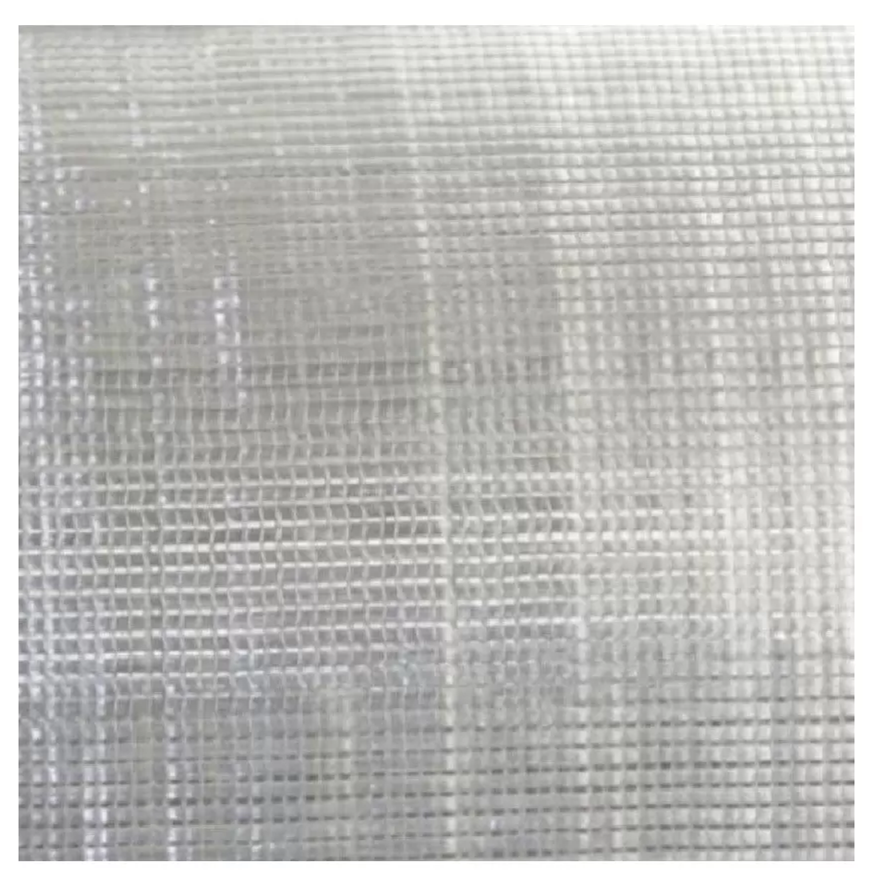

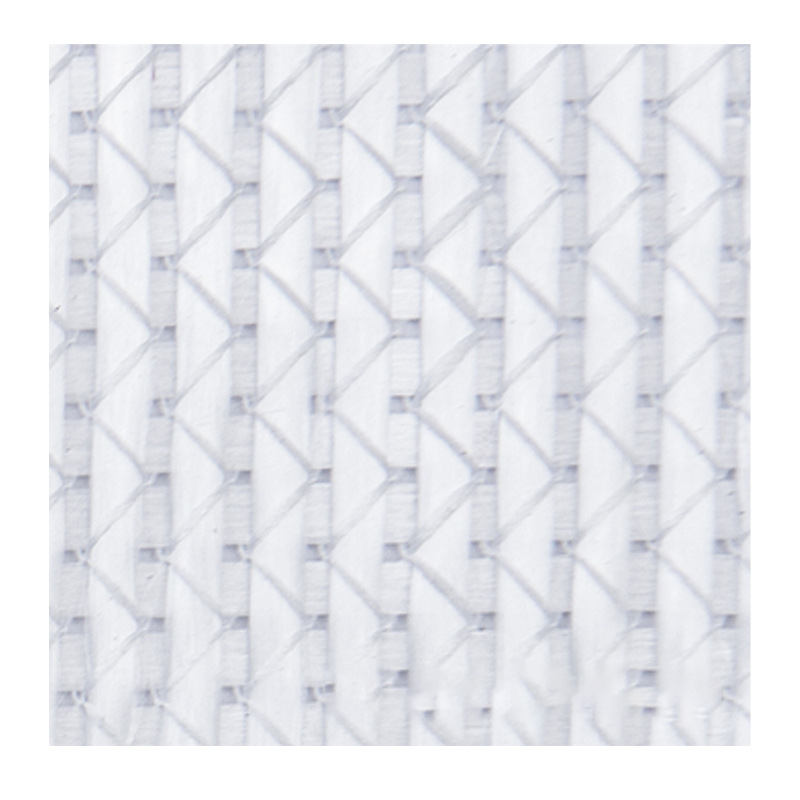

0°/90° Biaxial Stitched Fabrics
0°/90° Biaxial Stitched Fabrics are a type of composite reinforcement consisting of unidirectional warp (0°) and weft (90°) plies that are stitch-bonded together. They offer superior stiffness without increasing the weight or thickness of laminates, making them ideal for high-performance structural applications. This stitch-bonded composite reinforcement combines continuous roving oriented in the 0° and 90° directions into a single fabric, and can be used with or without mat. Biaxial fabrics find extensive applications in wind blades, marine panels, snowboards, and truck and trailer panels, among others.
Property:
No binder, compatible with any resins
High strength
Builds quickly
Good mechanical performance
Easy work-ability and low cost
Technical Data
|
Product No. |
Overall Density （g/m2） |
0°Roving Density （g/m2） |
90°Roving Density （g/m2） |
Chop Density （g/m2） |
Polyester Yarn Density （g/m2） |
|
EKLT400 |
409.5 |
202 |
198 |
/ |
9.5 |
|
EKLT600 |
609.5 |
330 |
270 |
/ |
9.5 |
|
EKLT800 |
809.5 |
412.5 |
387.5 |
/ |
9.5 |
|
EKLT1200 |
1209.5 |
605 |
595 |
/ |
9.5 |
|
EKLTM400/200 |
609.5 |
202 |
198 |
200 |
9.5 |
|
EKLTM600/300 |
909.5 |
330 |
270 |
300 |
9.5 |
|
EKLTM600/450 |
1059.5 |
330 |
270 |
450 |
9.5 |
|
EKLTM800/250 |
1059.5 |
412.5 |
387.5 |
250 |
9.5 |
|
EKLTM800/300 |
1109.5 |
412.5 |
387.5 |
300 |
9.5 |
|
EKLTM800/450 |
1259.5 |
412.5 |
387.5 |
450 |
9.5 |
|
EKLTM1608 |
835.5 |
275 |
276 |
275 |
9.5 |
|
EKLTM1808 |
894.5 |
330 |
280 |
275 |
9.5 |
|
EKLTM2408 |
1092 |
412.5 |
395 |
275 |
9.5 |
|
EKLTM2415 |
1274.7 |
412.5 |
395 |
457.7 |
9.5 |
|
EKLTM3208 |
1381.5 |
605 |
492 |
275 |
9.5 |
Size:
Standard width: 120cm,125cm, Max.width 260cm. Min.width 10cm
Standard Roll weight: 55 or 60kg
Packaging:
Each roll is wound on paper tube (3”Dia.) with plastic film and packed in individual cardboard box. 16 or 12 cartons per Pallet.
Application:
0°/90° Biaxial Stitched Fabrics are commonly used in various applications that require improved stiffness and strength. Some of the typical applications include:
Aerospace industry: Biaxial fabrics are used in the aerospace industry to manufacture aircraft components such as wings, fuselages, and tail structures.
Automotive industry: Biaxial fabrics are used in the automotive industry to manufacture parts such as body panels, hoods, and doors.
Marine industry: Biaxial fabrics are used in the marine industry to manufacture boat hulls, decks, and other structural parts.
Wind energy: Biaxial fabrics are used in wind turbine blades to provide high stiffness and strength while minimizing weight.
Sports equipment: Biaxial fabrics are used in the manufacture of sports equipment such as skis, snowboards, and surfboards to provide stiffness and strength.
