Continuous Filament Mat

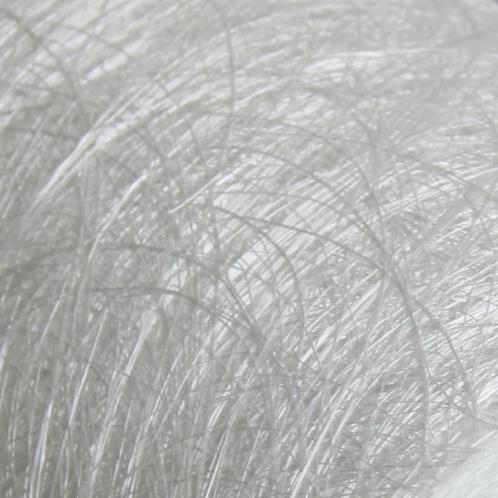

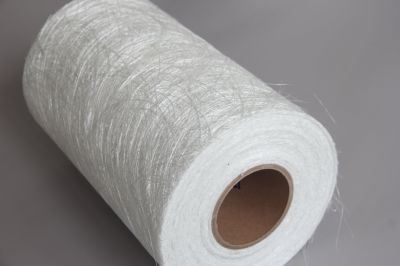

Continuous filament mat is made up of continuous fiberglass strand (Its main raw material is continuous fiberglass strand). It is containing an insoluble for unsaturated polyester, epoxy, phenolics and polyurethane resin compatibility in unfilled or filled resin system. It could be used for RTM, infusion, pultrusion process etc., for example automotive inner decorative parts and cable insulation materials.
Characteristics
• High breaking strength of dry and wet condition
• Rapid wet-through
• Easily conforms to complex shapes, while providing a smooth finished surface
Technical Specification
|
Density (g/㎡) |
Moisture Content (%) |
Binder Content (%) |
Tensile Strength (N/75*200mm) |
Width (mm) |
|
300 |
≤0.2 |
2.1~6.3 |
＞200 |
1040, 1200 |
|
450 |
≤0.2 |
2.1~6.3 |
＞300 |
1040, 1200 |
|
600 |
≤0.2 |
2.1~6.3 |
＞350 |
1040, 1200 |
Storage
Continuous filament mat should be stored in its original packaging in a dry , cook and water-proof place. The recommended conditions are at temperatures from 15 to 35℃ and humidity between 35 and 65%. To ensure safety and avoid damage to the product, the pallets should not be stacked more than three layers high, when the pallets are stacked in 2 or 3 layers, special care should be taken to move the top pallet correctly and smoothly.
Packaging
