Combo Mat

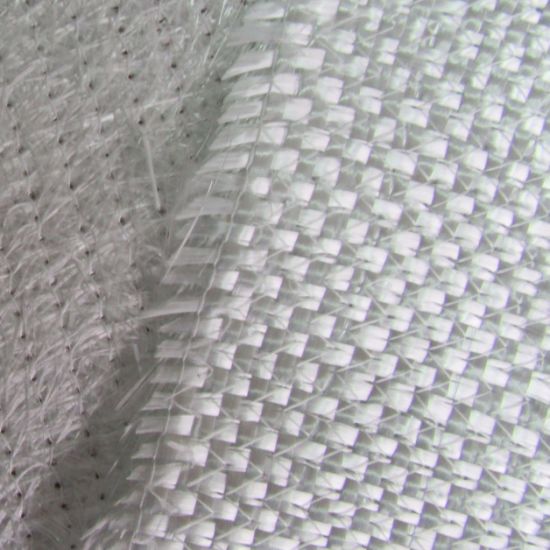

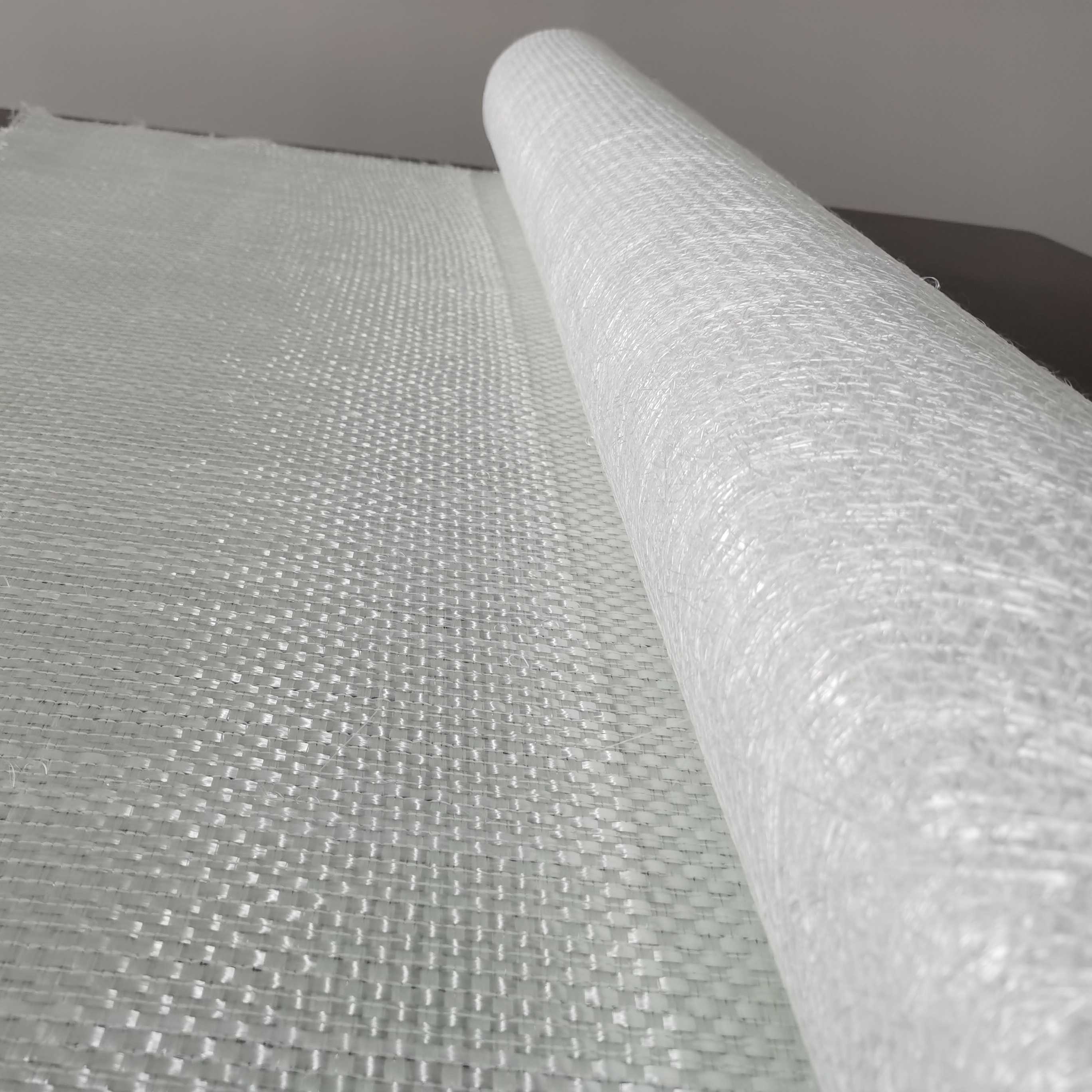

Combo mat is made by cutting the continuous roving to 50mm in length and un-directionally drop on the woven roving, and knitted together by organic fiber. It’s compatible with UP, vinyl-ester, phenolic and epoxy resin.
Combo mat is widely used in FRP pultrusion, hand lay-up, RTM process to make FRP boat hulls, car body, panel and sheets, cooling parts and doors, various profiles.
Characteristics
• Width ranging from 50mm to 2400mm, no binder used.
• Good wet out in resins.
• Fiber with high arranging density, high strength.
• With regular inter-spacing, benefit to resin flow and impregnation.
• Excellent stability, benefit to improve efficiency.
• Excellent pressing performance, light weight, high strength.
Technical Specification
|
Product |
Weight (g/㎡) |
Woven Roving (g/㎡) |
Chopped Strands (g/㎡) |
Moisture Content (%) |
Wet Speed (≤s) |
Layer |
|
EMK200/200 |
400 |
200 |
200 |
≤0.2 |
60 |
2 |
|
EMK300/300 |
600 |
300 |
300 |
≤0.2 |
60 |
2 |
|
EMK400/300 |
700 |
400 |
300 |
≤0.2 |
60 |
2 |
|
EMK500/300 |
800 |
500 |
300 |
≤0.2 |
60 |
2 |
|
EMK500/450 |
950 |
500 |
450 |
≤0.2 |
60 |
2 |
|
EMK600/300 |
900 |
600 |
300 |
≤0.2 |
60 |
2 |
|
EMK600/450 |
1050 |
600 |
450 |
≤0.2 |
60 |
2 |
|
EMK800/300 |
1100 |
800 |
300 |
≤0.2 |
60 |
2 |
|
EMK800/450 |
1250 |
800 |
450 |
≤0.2 |
60 |
2 |
Storage
Combo mat should be stored in its original packaging in a dry , cook and water-proof place. The recommended conditions are at temperatures from 15 to 35℃ and humidity between 35 and 65%. To ensure safety and avoid damage to the product, the pallets should not be stacked more than three layers high, when the pallets are stacked in 2 or 3 layers, special care should be taken to move the top pallet correctly and smoothly.
Packaging
