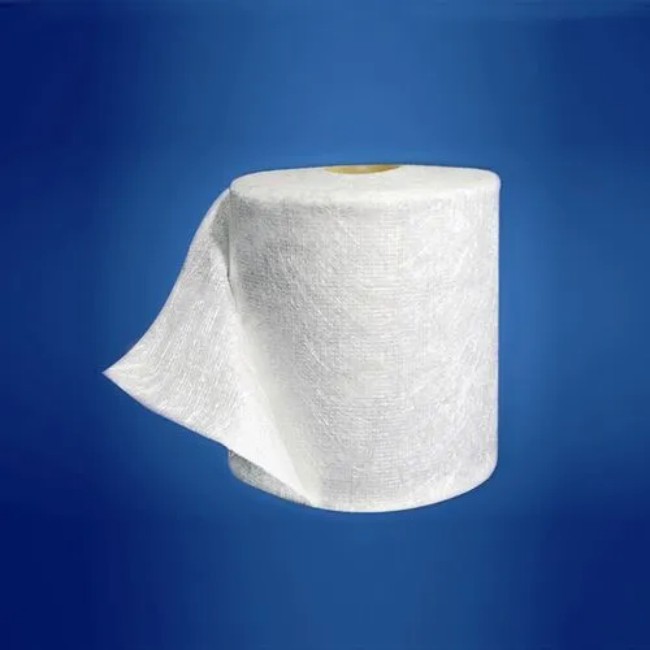

Stitched Mat

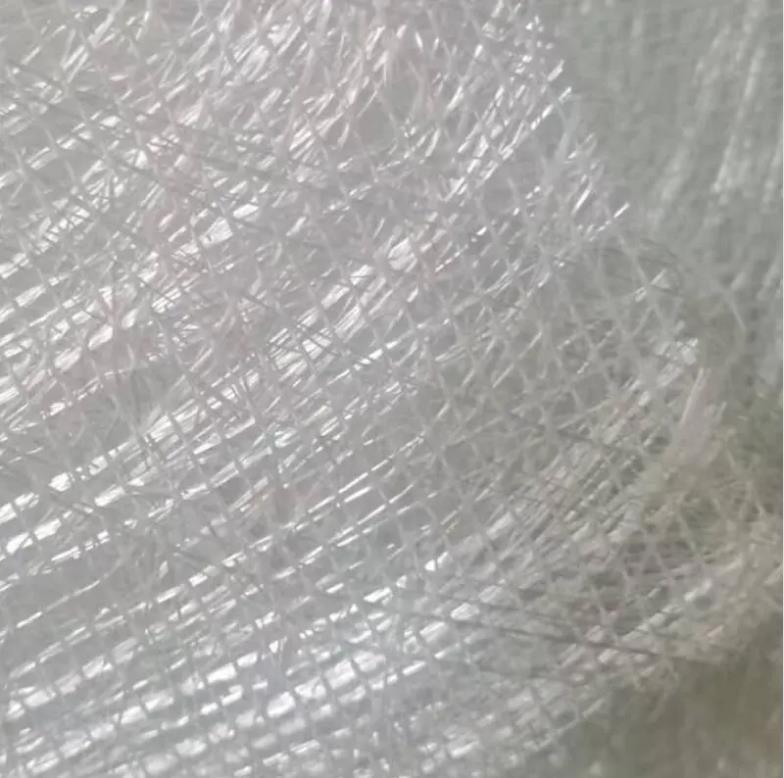

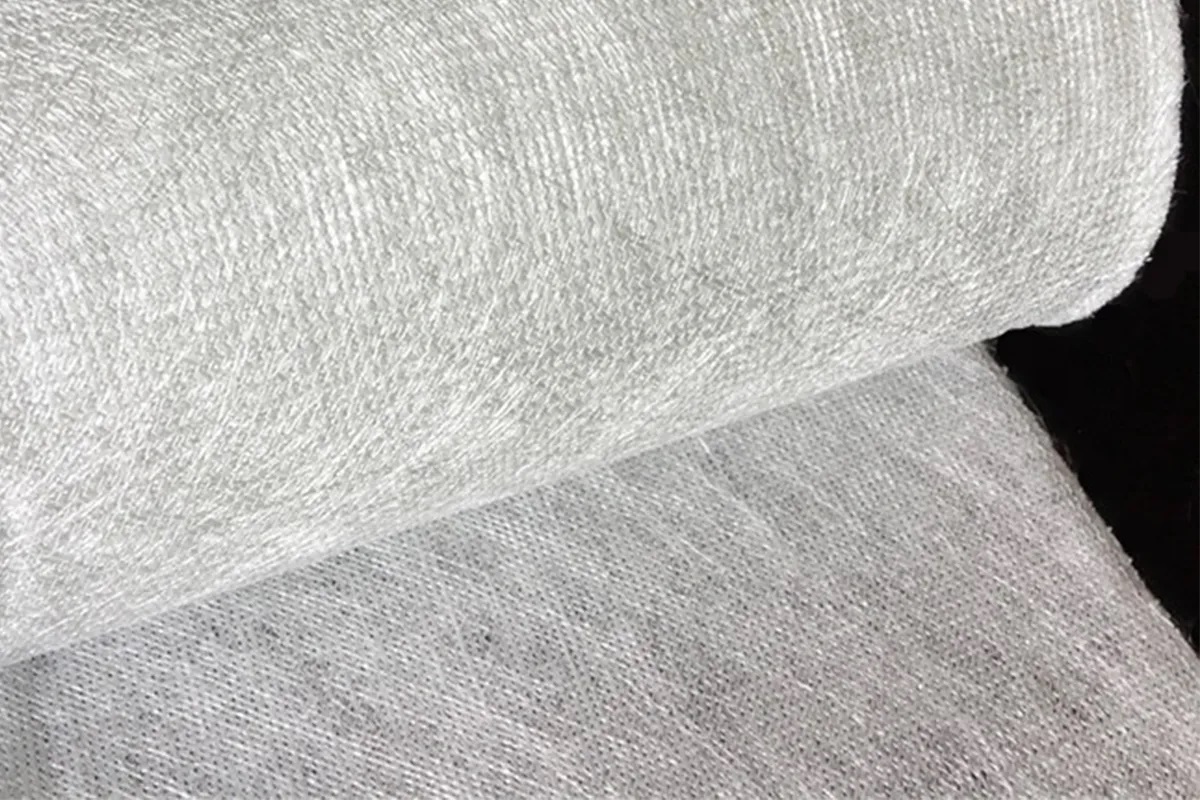

Stitch mat is a fabric made of fiberglass chopped strands randomly dispersed and laid on a roving matrix(or without matrix), then stitched together by organic fiber. It is compatible with polyester, phenolic and epoxy resin.

Stitched mat is mostly used primarily in pultrusion, RTM, filament winding, compression molding and lay-up processed. Typical products include pultruded pipes, storage tanks, wind generator blades and other FRP products.

Characteristics

• Complete products specification width range from 50mmto 2400mm.

• Even thickness, with wet tensile strength retention.

• Good mold-ability, good drapability and easy operation.

• Excellent rollout characteristics and effective reinforcement.

• Good wet out in resins and high productivity.

Technical Specification

Storage

Stitched mat should be stored in its original packaging in a dry , cook and water-proof place. The recommended conditions are at temperatures from 15 to 35℃ and humidity between 35 and 65%. To ensure safety and avoid damage to the product, the pallets should not be stacked more than three layers high, when the pallets are stacked in 2 or 3 layers, special care should be taken to move the top pallet correctly and smoothly.

Packaging
