Stitched Combo Mat

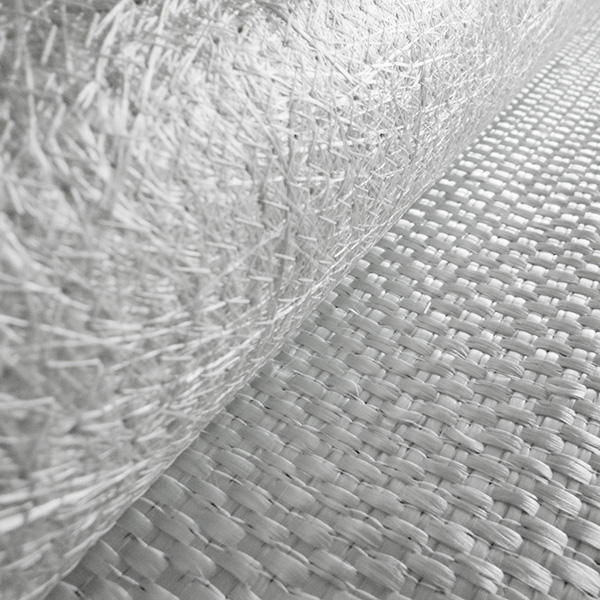

Stitched combo mat is a special reinforcement specifically designed for use in closed mould systems, such as RTM and Vacuum Infusion. The surface layers consist of chopped strands E-glass fiber which are stitched together with a porous elastic layer in between. The middle layer is core material made from polypropylene which provides increased resin flow properties along with good surface quality.

Stitched combo mat is compatible with polyester, vinyl ester, phenolic and epoxy resins. The product is widely used in pultrusion, hand lay-up and RTM processes. The product is used most widely in the boat industry and the typical applications include FRP boat hulls, automotive housings and doors, laminates, cooling apparatus and structural shapes.

Characteristics

• Even thickness

• Fast wet out

• Good tensile strength

• Dimensional stability

• Better wet out and resin flow

Technical Specification

Storage

Stitched combo mat should be stored in its original packaging in a dry , cook and water-proof place. The recommended conditions are at temperatures from 15 to 35℃ and humidity between 35 and 65%. To ensure safety and avoid damage to the product, the pallets should not be stacked more than three layers high, when the pallets are stacked in 2 or 3 layers, special care should be taken to move the top pallet correctly and smoothly.

Packaging
