Chopped Strand Mat
Product Introduction

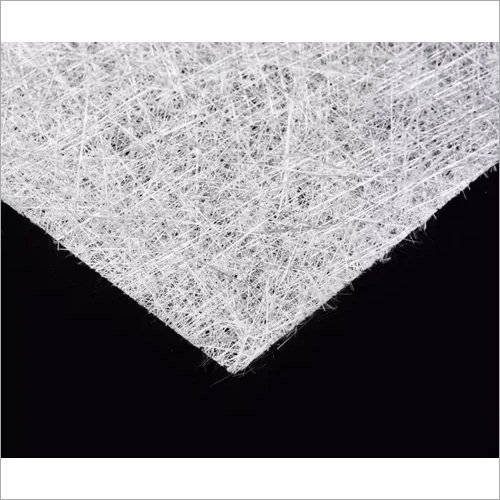

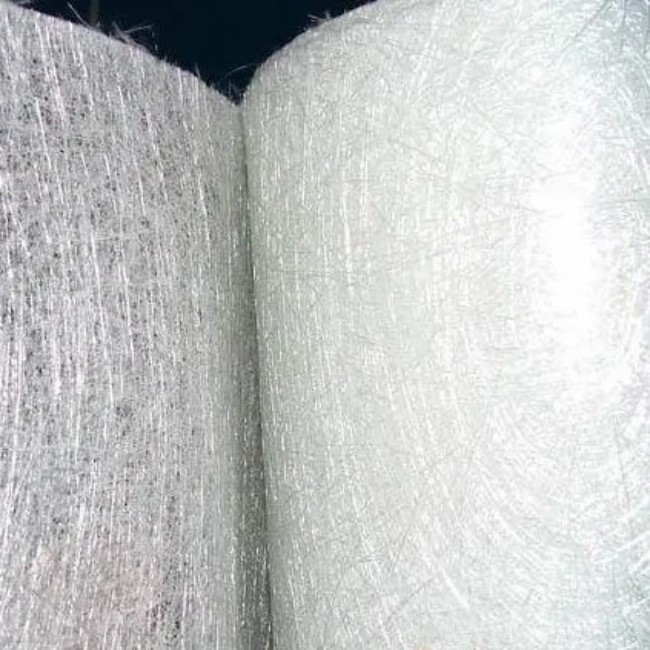

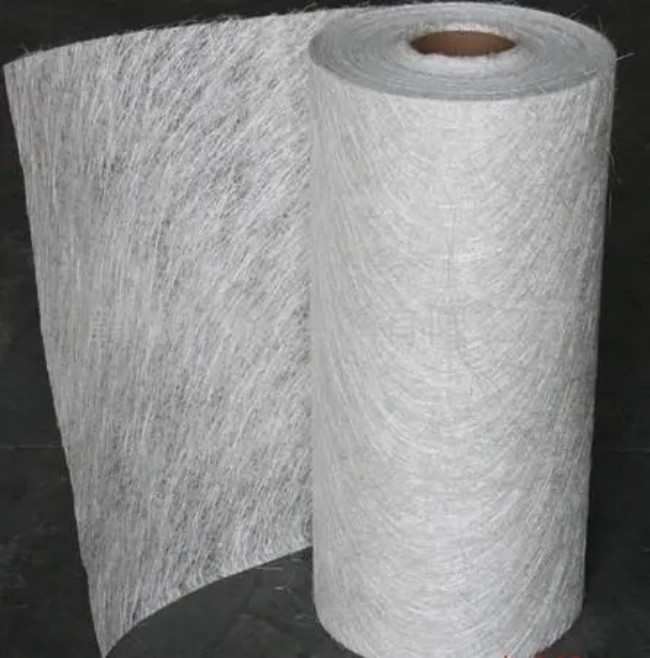

Our Chopped Strand Mat is fine strand reinforcement material made from E-glass cut fibers laid in a random pattern and bonded with powder or emulsion binder. It is specially designed for hand lay-up and continuous laminating process. It is easy to handle and has excellent moulding performance.
Also, it has rapid resin penetration together with a fast strand wet out time. The mat also brings a highly translucent finished laminates. Also, the fine strand input makes the fiber prominence at the finished laminates surface extremely low. It is an excellent reinforcement material for translucent roofing panel, chemical storage tanks, FRP pipes, boat hulls and decks, truck body panel and so on.
We can also supply light weight chopped strand mat.
Characteristics
• Excellent weight uniformity
• Fast wet out
• Easy air release
• Excellent transparency of finished products
• Excellent laminate clarity
• Low resin consumption
Technical Specification
| Product | Area Weight | Moisture Content | Binder Content | Tensile Strength | Width |
| Test Method | ISO3374 | ISO3344 | ISO1887 | ISO3342 | ISO 5025 |
| EMC85 | 85 | ≤0.20 | 9±5 | ≥50 | ±5 |
| EMC100 | 100 | ≤0.20 | 9±5 | ≥70 | ±5 |
| EMC120 | 120 | ≤0.20 | 9±5 | ≥100 | ±5 |
| EMC225 | 225 | ≤0.20 | 2-8 | ≥80 | ±5 |
| EMC300 | 300 | ≤0.20 | 2-8 | ≥130 | ±5 |
| EMC450 | 450 | ≤0.20 | 2-8 | ≥150 | ±5 |
| EMC600 | 600 | ≤0.20 | 2-8 | ≥170 | ±5 |
| EMC900 | 900 | ≤0.20 | 2-8 | ≥180 | ±5 |
Storage
Chopped Strand mat should be stored in its original packaging in a dry , cook and water-proof place. The recommended conditions are at temperatures from 15 to 35℃ and humidity between 35 and 65%. To ensure safety and avoid damage to the product, the pallets should not be stacked more than three layers high, when the pallets are stacked in 2 or 3 layers, special care should be taken to move the top pallet correctly and smoothly.
Packaging
